IPCSD4K25X

4K, 25x, True Day/Night, WDR, IR, PTZ Dome

Key Features

Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
LightHunter illumination technology ensures ultra-high quality with 4K (8MP), Ultra-HD 3840 x 2160 Resolution
Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage
Ultra-Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 656 Feet
6 ~ 150mm, 25x Optical motorized zoom and automatic focus lens
TRUE Day/Night and Digital Wide Dynamic Range Functionality for all Lighting Conditions
Two-way Audio, Backlight Compensation and 3D DNR (Digital Noise Reduction)
High Speed up to 300°/sec and up to 1024 Preset Positions
Triple Video Streams; ONVIF Profile Series Compliant
Intelligent Perimeter Protection with Smart Intrusion Detection Analytics

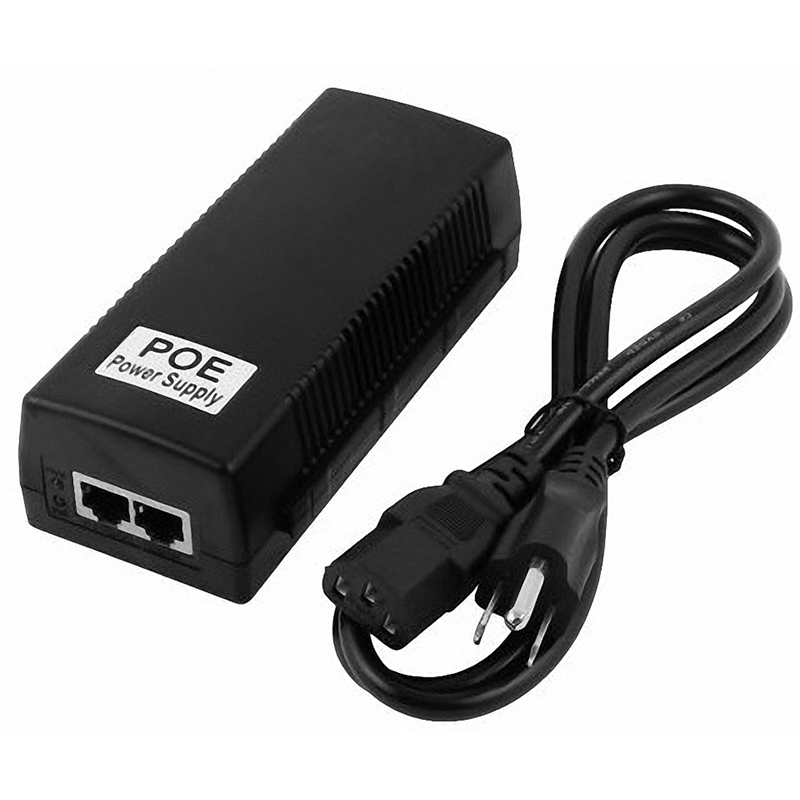

PoE (Optional Injector Required), 24VAC and 24VDC Power Options
Built-in Micro-SD Card Slot enables local storage up to 256GB and ANR

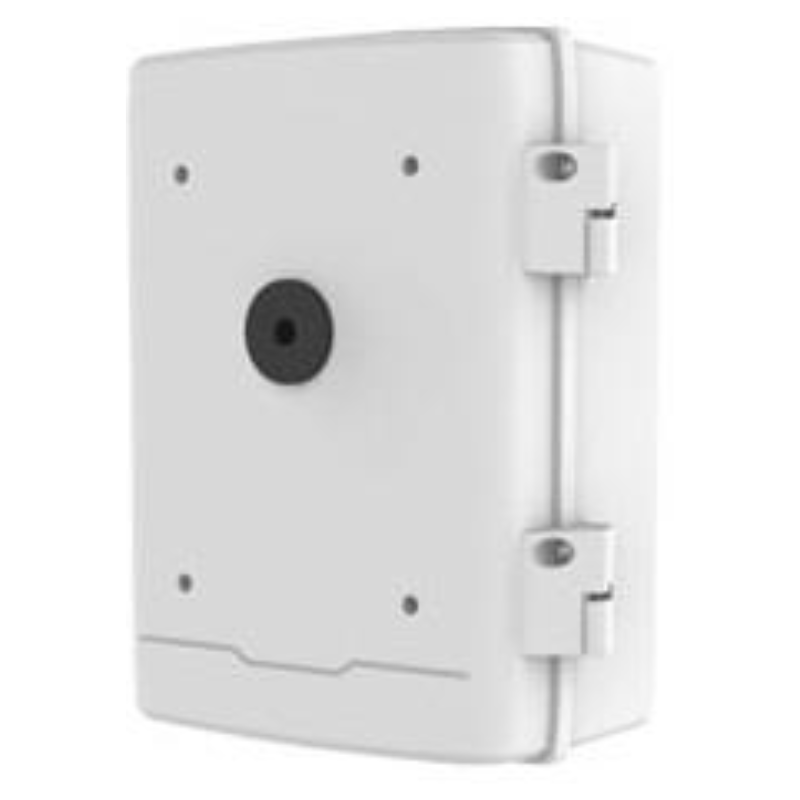

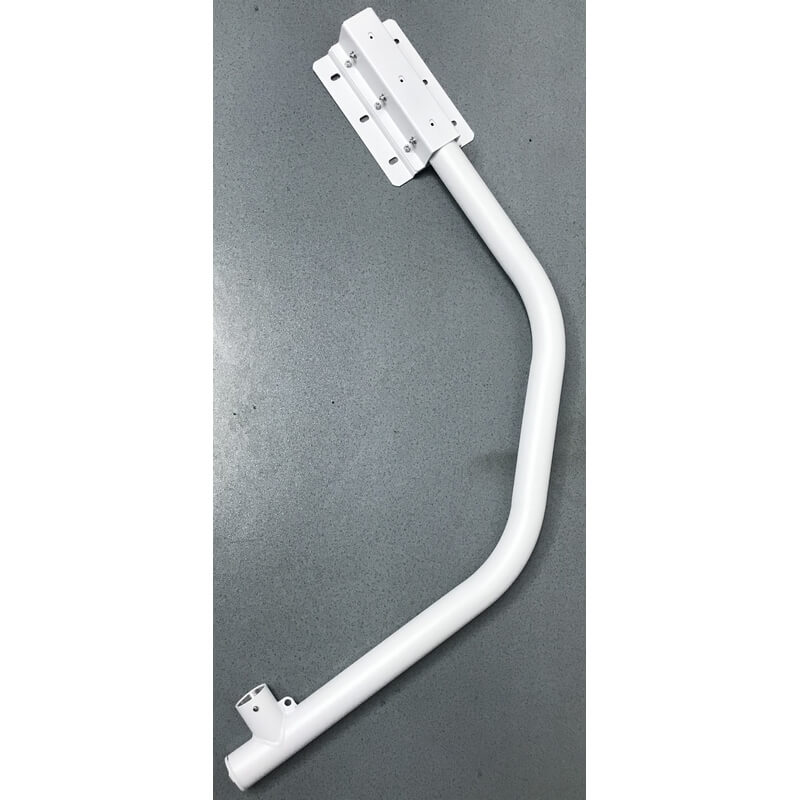

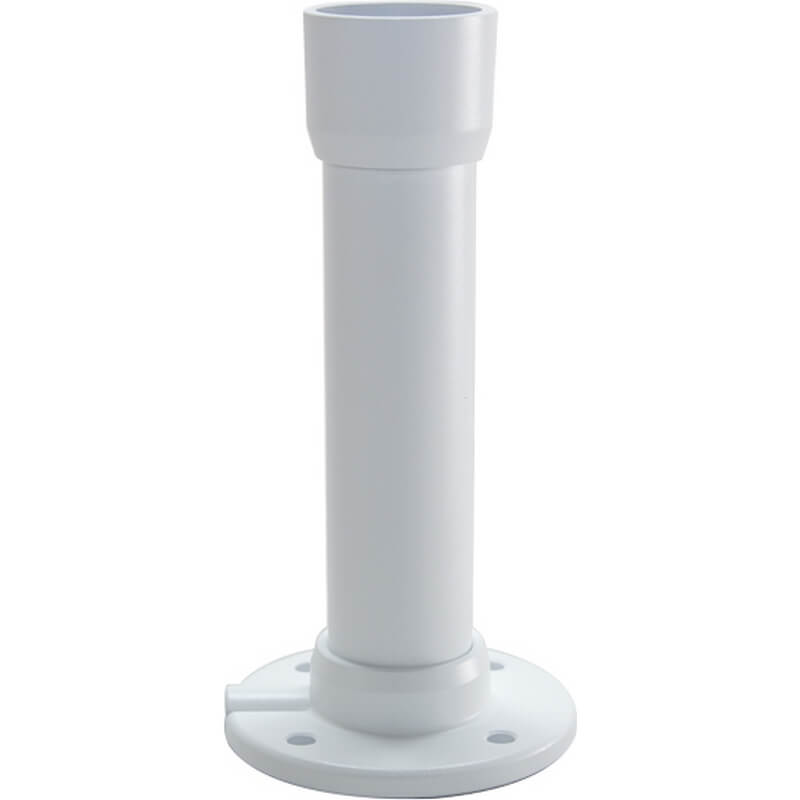

IP66 Weather Resistant Housing and Optional Mounts Available
Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices

SKU: IPCSD4K25X Categories: 4K Security Solutions, IP Security Cameras, PTZ

Camera
Sensor	1/1.8", progressive scan , 8 megapixel CMOS
Lens	6 ~ 150 mm, automatic focusing and motorized zoom lens
Angle of View (H x V)	60.5° ~ 3.1° x 36.3° ~ 1.8° (wide ~ tele)
Shutter	Auto/Manual, 1 ~ 1/100000 s
Minimum Illumination	Color: 0.003 Lux (F1.5, AGC ON); 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
WDR; Digital noise reduction	Digital; 2D/3D DNR
IR LED Range	Up to 200m (656ft) IR range
Video Compression	Ultra 265, H.265, H.264, MJPEG
Maximum Frame Rate / Stream	Main Stream: 8MP (3840 × 2160), Max.30fps (Max 20fps when AI functions enabled) Sub Stream: 2MP (1920×1080), Max. 30fps Third Stream: D1 (720×576), Max. 30fps
HLC, BLC, Defog, Flip	Supported
OSD, Privacy Mask, Motion Detection & ROI	Up to 24 areas
Pan and Tilt; Presets, Patterns, Patrols	360° Endless Pan, 300°/s max speed; -15° ~ 90° Tilt, 240°/s max speed; 1024 Presets; 16 Patterns; 16 Patrols
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible Integration	ONVIF (Profile S, G and T), API
Network	RJ45, 10M/100M Base-TX Ethernet
Smart Intrusion Prevention	Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection; Face capture
Local & Network Storage	Micro-SD, up to 256GB; Automatic Network Replenishment (ANR)
General
Power	24VAC, 24VDC +/- 25%, PoE (Injector Req’d): Max 58W
Dimensions (Ø x H) & Weight	Ø227 x 384.8mm (Ø8.9” x 15.1”); 5.6kg (12.3lb)
Audio I/O & Compression; Alarm I/O	1 / 1; G711; 1/1
Operating Temperature & Humidity	-40°C ~ +65°C (-40°F ~ 149°F); Humidity: 10%~ 95% RH (non-condensing)
Conformity Certifications	IP66, CE, FCC
