Coming Soon

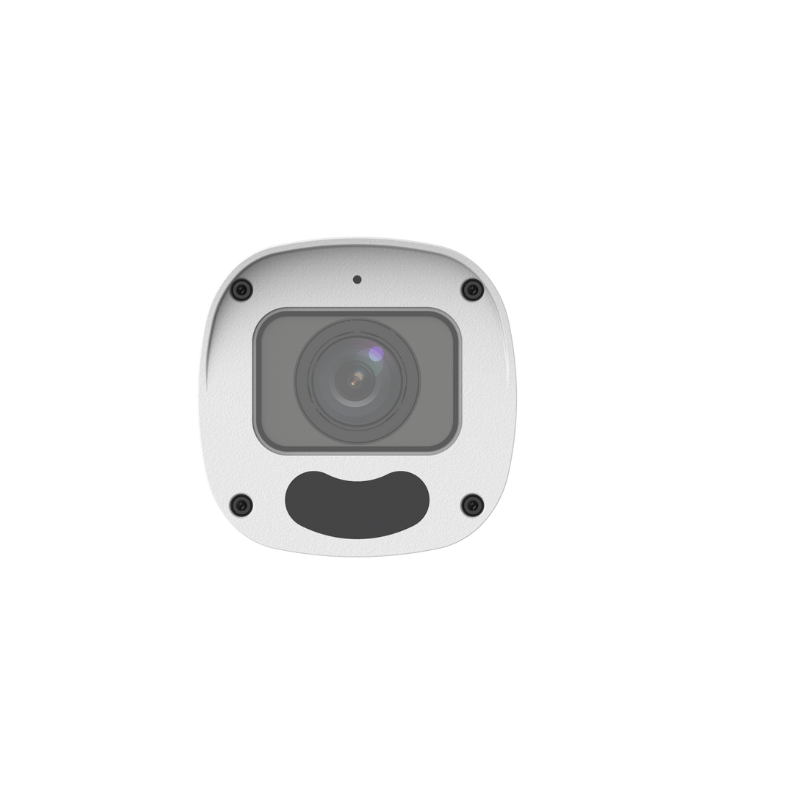

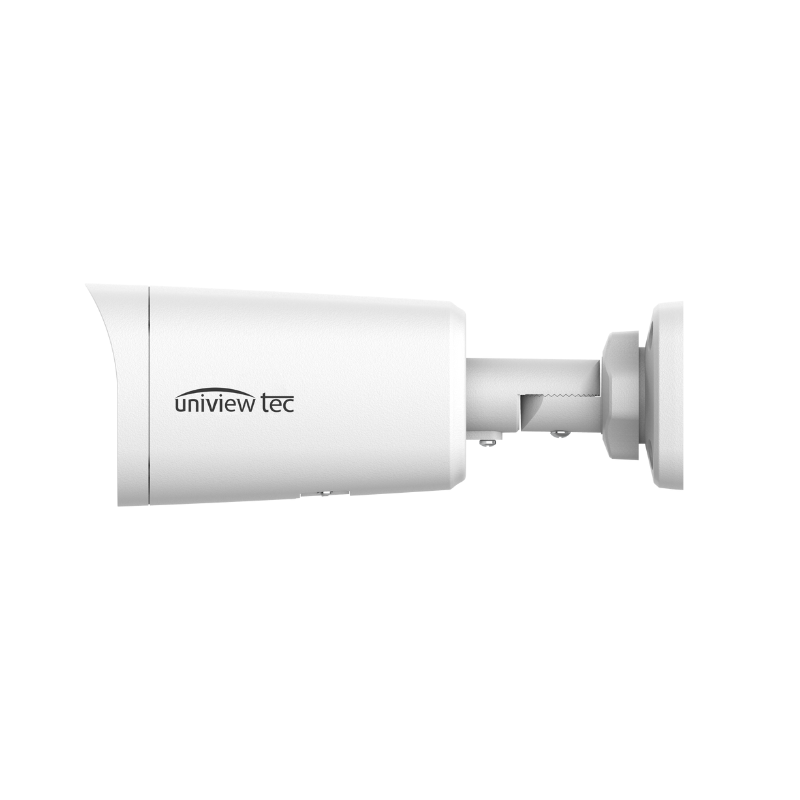

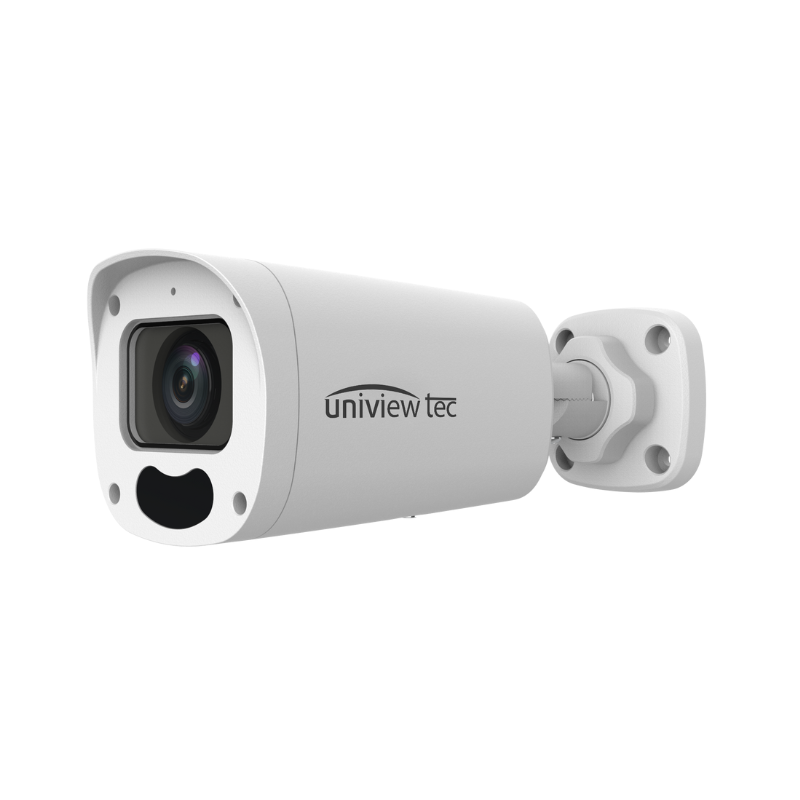

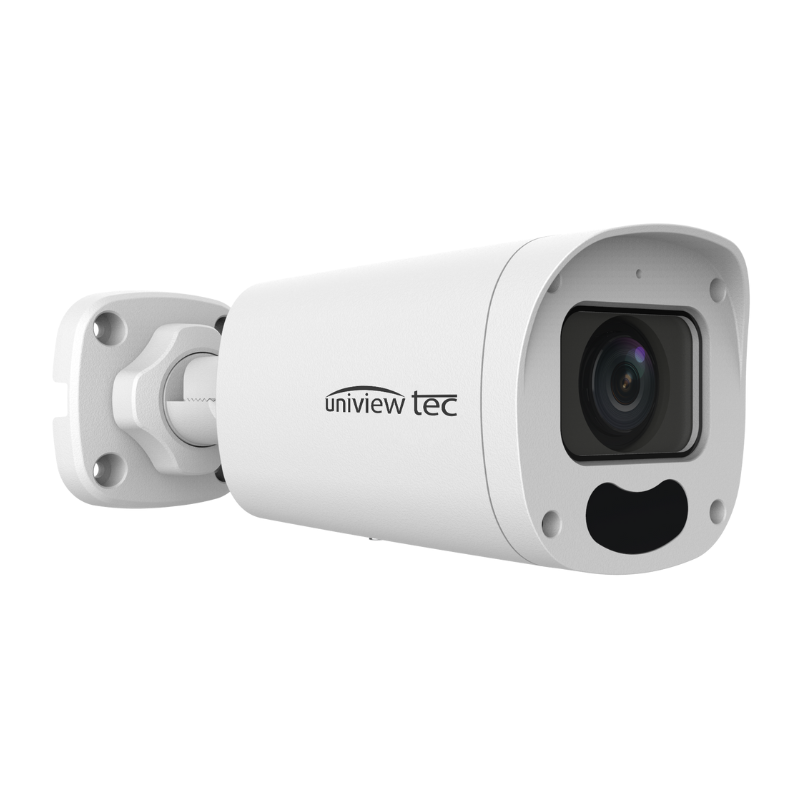

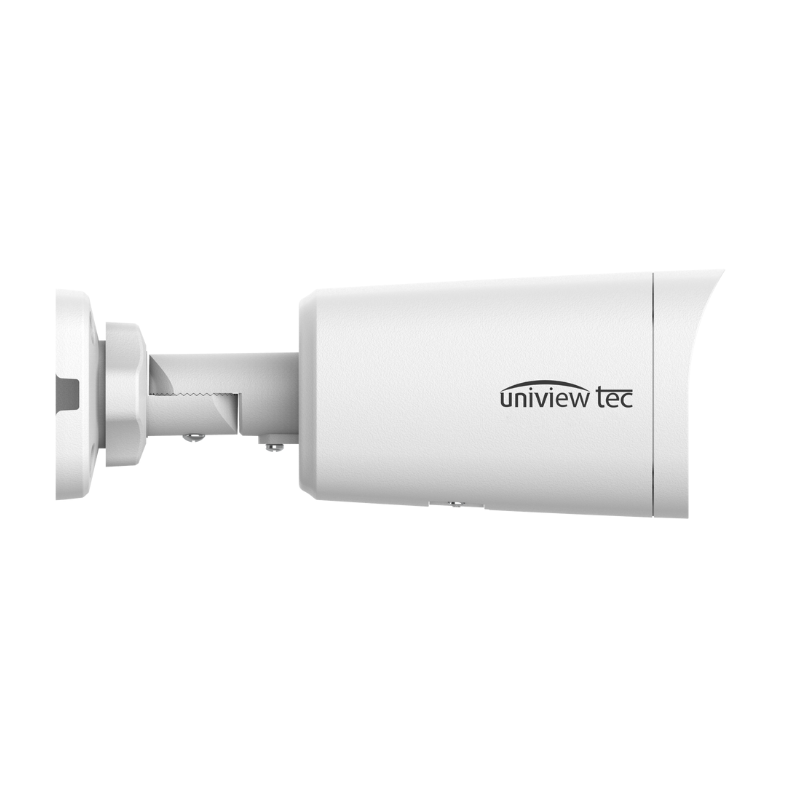

IPB4U212MXV

4MP, TRUE DAY/NIGHT, WDR, IR BULLET

Want to buy this product?
Find A Dealer

Key Features

  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • Exceptional Video Quality with 4MP, 2560 x 1440 Resolution
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
  • Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 164 Feet
  • 2.8 ~ 12mm Motorized Varifocal, Automatic Focus Lens
  • TRUE Day/Night and WDR Functionality for All Lighting Conditions
  • Backlight Compensation and 3D DNR (Digital Noise Reduction)
  • Triple Video Streams; ONVIF Profile S Compliant
  • Powerful Video Analytics Such as Intrusion, Tampering, Audio and Human Body Detection
  • PoE & 12VDC Power Options
  • Built-in Micro-SD Card Slot Enables Local Storage up to 512GB
  • IP67 Weather Resistant Housing
  • Supported by Uniview Tec Guard Station Software and Guard Viewer Mobile Apps for iPhone and Android Devices

Compare
SKU: IPB4U212MXV Categories: ,

>

Camera
Sensor 1/2.7" CMOS
Minimum illumination Color: 0.005 Lux (F1.6, AGC ON); 0 Lux with IR on
True Day / Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
S/N >52 dB
WDR 120 dB
Lens
Lens 2.8 ~ 12 mm
Iris F1.6
Field of View (H) 107.6° to 37.2°
Field of View (V) 57.8° to 21.3°
Field of View (D) 128.3° to 42.9°
DORI
DORI Distance

Lens (m)

2.8 mm, 12 mm

Detect (m)

42.0 m to 180.0 m (137.8 ft. to 590.6 ft.)

Observe (m)

21.0 m to 90.0 m (68.9 ft. to 295.3 ft.)

Recognize (m)

10.1 m to 43.2 m (33.1 ft. to 141.7 ft.)

Identify (m)

6.3 m to 27.0 m (20.7 ft. to 88.6 ft.)
Illuminator
Supplemental Light IR
Illumination Distance (IR) 50 m (164.0 ft.)
Wavelength 850 nm
IR On/Off Control Auto/Manual
Video
Video Compression H.265; H.264
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps;720P (1280 × 720), max. 30 fps;
Sub Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps;2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate 128 Kbps ~ 6144 Kbps
U-code Support
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Dual Streams
White Balance Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal; Flip Vertical; Flip Horizontal; 180°; 90° Clockwise; 90° Anti-clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Events
Basic Detection Motion detection, Ultra motion detection (human/vehicle detection), Tampering alarm, Audio detection, Cross line (based on human and vehicle detection), Intrusion (based on human and vehicle detection)
General Functions Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication
Storage
Edge Storage Micro SD, up to 512 GB
Network Storage ANR; NAS (NFS)
Audio
Audio Compression G.711U; G.711A; AAC-LC
Audio Bitrate 64 Kbps
Two-way audio N/A
Suppression Support
Sampling Rate G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz
Network
Protocols IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; SSL/TLS; QoS; SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T); API
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Client Guard Live, Guard Viewer, Guard Station
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O N/A
Alarm I/O N/A
Built-In Mic Support
Built-In Speaker N/A
WIFI N/A
Network 1 x RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368-1); CB (IEC 62368-1)
Environment CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection IP67 (IEC 60529)
General
Power DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 7.5W
Power Interface Ø 5.5 mm coaxial power plug
Dimensions 197.4 mm × 73.0 mm × 72.9 mm (7.8" × 2.9" × 2.9") (L × W × H)
Weight 0.51 kg (1.12 lb)
Environment -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Reset Button Support
