New Product

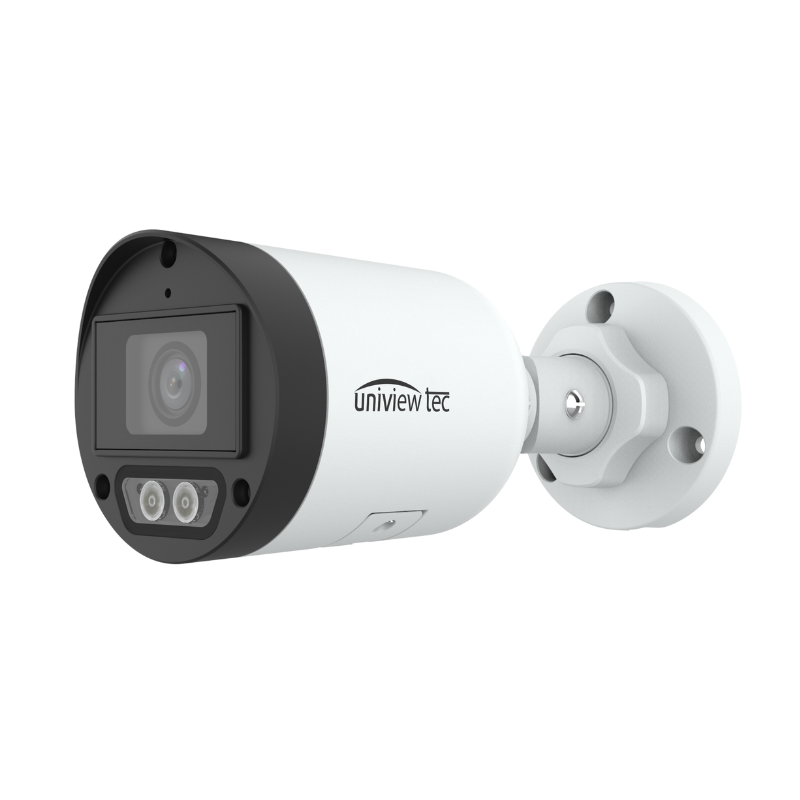

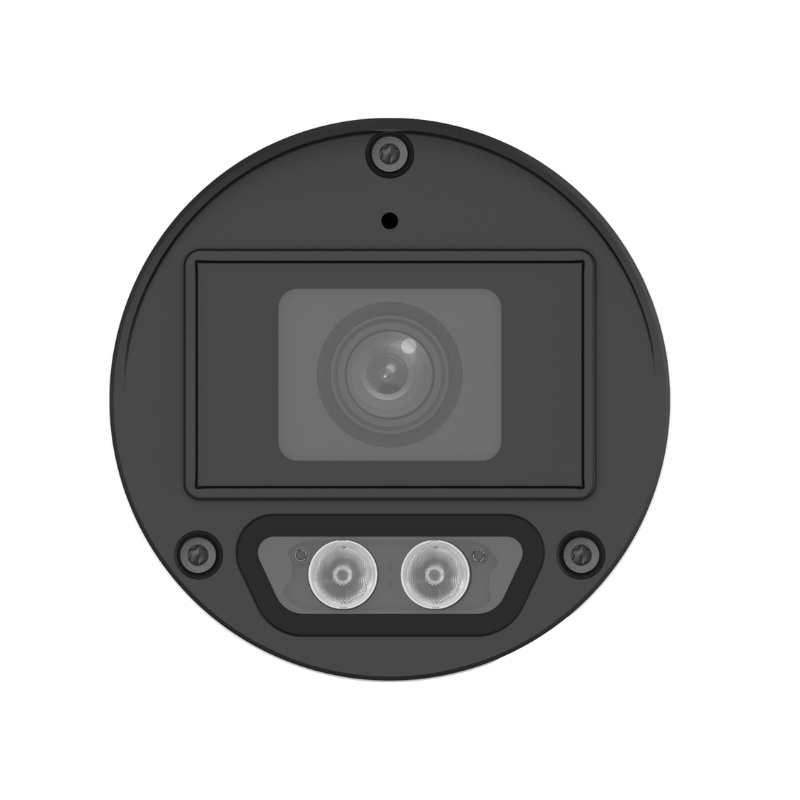

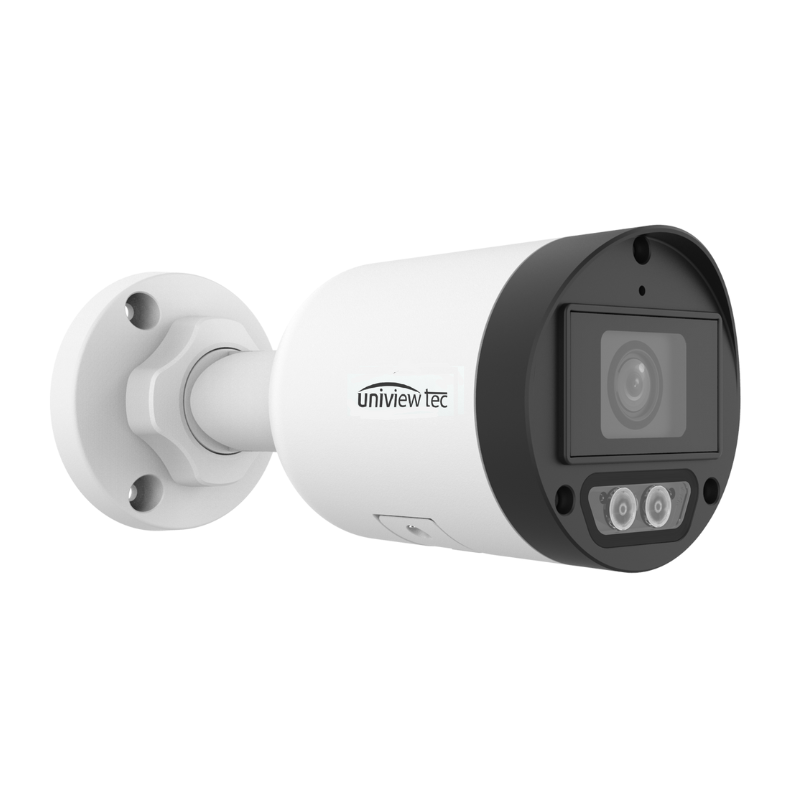

IPB5EC28X

5MP, COLORHUNTER, BULLET

Want to buy this product?
Find A Dealer

Key Features

  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • Exceptional Video Quality with 5MP, 2880 x 1620 Resolution
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
  • Powerful, Smart IR LED Lights for 0 Lux Night Time Operation and Warm Light Operation up to 98 Feet
  • 2.8mm Fixed Lens, Corridor Support, Built in Mic
  • TRUE Day/Night and WDR functionality for all Lighting Conditions
  • Backlight Compensation and 3D DNR (Digital Noise Reduction)
  • Dual Video Streams; ONVIF Profile S Compliant
  • PoE & 12VDC Power Options and Optional Mounts Available
  • Built-in Micro-SD Card Slot enables local storage up to 128GB
  • 3-Way Axis, IP67 Weather Resistant Housing
  • Supported by uniview tec Guard Station Software, Guard Live and Guard Viewer Mobile App’s for iPhone or Android Devices

Compare
SKU: IPB5EC28X Categories: ,
Camera
Sensor 1/3.0" CMOS
Min. Illumination Color: 0.01 lux ( F1.6, AGC ON); 0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0°~ 360°, Tilt: 0°~ 90°, Rotate: 0°~ 360°
S/N >52dB
WDR DWDR
Lens
Focal Length 2.8 mm
Iris F1.6
Field of View (H) 97.0°
Field of View (V) 52.2°
Field of View (D) 107.5°
DORI
DORI Distance (Lens) 2.8mm
DORI Distance(Detect) 63.0m(206.7ft)
DORI Distance(Observe) 25.2m (82.7ft)
DORI Distance(Recognize) 12.6m (41.3ft)
DORI Distance(Identify) 6.3m (20.7ft)
Illuminator
Illumination Distance (IR) 30m (98ft)
Illumination Distance (Warm) 30m (98ft)
Wavelength 850 nm
IR On/Off Control Auto/Manual
Video
Video Compression H.265; H.264; MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 5MP (2880*1620)@ 20fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps ~ 6144 Kbps
U-code Support
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Dual Streams
White Balance Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Events
Basic Detection Ultra-Motion Detection; Motion Detection; Tampering Alarm; Audio Detection; Human Body Detection
General Function Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication
Storage
Edge Storage Micro SD, up to 128 GB
Network Storage ANR; NAS (NFS)
Audio
Audio Compression G.711U; G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8KHZ
Network
Protocols IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; SSL/TLS; QoS; SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T); API, SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Client Guard Live, Guard Viewer, Guard Station
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O N/A
Alarm I/O N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 x RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130); FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection IP67 (IEC 60529)
General
Power DC 12V±25%, PoE (IEEE 802.3af); Max 2.8W
Power Interface Ø 5.5 mm coaxial power plug
Dimensions 161.4 × 66.1 × 66.3mm (6.3” × 2.6” × 2.6”)
Weight 0.24kg (0.53lb)
Material Metal + Plastic
Environment -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Reset Button N/A
TR-JB05-B-IN TR-JB05-B-IN

Junction Box

Waterproof Plastic Grommet TR-A01-IN

Waterproof Plastic Grommet

Pole Mount 127 x 136 x 62.5mm (5 x 5.35 x 2.46”) TR-UP06-C-IN

Pole Mount

Pole Mount 127 x 136 x 62.5mm (5 x 5.35 x 2.46”) TR-UC08-C

Corner Mount
