IPV528X

5MP Lighthunter, TDN, WDR, IR, Vandal Dome

Key Features

Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
LightHunter Technology for ultra-high quality color video images in low light applications with up 5MP, 2880 x 1620 Resolution
Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 98 Feet
2.8mm fixed lens, TRUE Day/Night and WDR functionality for all Lighting Conditions
Two-way Audio, Corridor View, Backlight Compensation and 3D DNR (Digital Noise Reduction)
Triple Video Streams, ONVIF Profile S Compliant
Intelligent Perimeter Protection with Smart Intrusion Detection Analytics

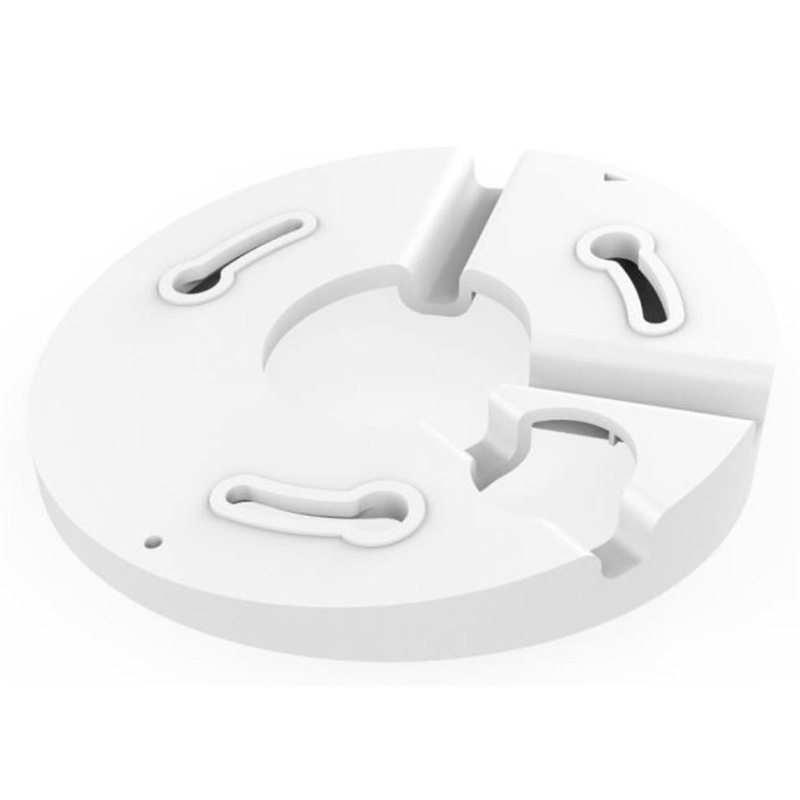

PoE & 12VDC Power Options; Optional Wall and Pendant Mounts Available
Built-in Micro-SD Card Slot enables local storage up to 256GB
IP67 Weather Resistant and IK10 Vandal Resistant Rated Vandal Housing
Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices

SKU: IPV528X Categories: IP Cameras, Vandal Dome

Power12VDC +/- 25%, PoE (IEEE802.3 af); Max 4.5W

Camera
Sensor	1/2.7", progressive scan , 5 megapixel, CMOS
Lens	2.8mm@ F1.6
Angle of View (H x V )	96.1° x 55.3°
Shutter	Auto/Manual, 1~1/100000 s
Minimum Illumination	Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
IR LED Range	Up to 30m (98 ft) IR range
WDR	120dB
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Maximum Frame Rate / Stream	Main Stream: 5MP (2880 x 1620) @ 30fps Sub: D1 (720 x 576) @ 30fps Third Stream: CIF (352 x 268) @ 30fps
HLC, BLC, 9:16 Corridor, Defog	Supported
OSD, Privacy Mask, Motion Detection & ROI	Up to 8 areas
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration	ONVIF (Profile S, G, T), API
Network	RJ45, 10M/100M Base-TX Ethernet
Smart Intrusion Prevention	Cross Line, Intrusion, Enter/Leave Area Detection
Local & Network Storage	Micro-SD, up to 256GB; ANR
General
Dimensions (Ø x H)	Φ108.7 x 81.1 mm (Ø4.3” x 3.2”); 0.43kg (0.93lb)
Audio I/O & Compression	1 / 1; G.711
Alarm I/O	1 / 1
Operating Temperature & Humidity	-30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing)
Conformity Certifications	IP67, IK10; CE, FCC
