HNR081X_UVT4330423-00_ND_final
HNR081X

8ch Analog x 4ch IP, 8MP Resolution, Hybrid NVR

    • 2TB HDD
    • HNR081X-2T
    • 8ch Analog x 4ch IP, 8MP Resolution, Hybrid NVR
    • 4TB HDD
    • HNR081X-4T
    • 8ch Analog x 4ch IP, 8MP Resolution, Hybrid NVR
    • 8TB HDD
    • HNR081X-8T
    • 8ch Analog x 4ch IP, 8MP Resolution, Hybrid NVR
    Want to buy this product?
    Find A Dealer

    Key Features

    • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
    • 8 analog x 4 IP Cameras, Hybrid network recorder with H.265 Compression
    • Simultaneously supports 8 Analog (AHD, TVI, CVI and CVBS) and 4 IP Video Inputs with adaptive access (or up to 6 IP channels if no analog cameras are connected)
    • Supports High Definition Analog (HD Analog) over Coax Technology for use of Existing Coax Cables & BNC Connectors, allowing mega-pixel video images from AHD, TVI and CVI camera without any rewiring
    • Supports recording of up to 8MP Resolution for HD Analog and IP Cameras
    • Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
    • HDMI display resolution up to 8MP
    • Supports Audio I/O and PTZ Camera control
    • Easy Plug and Play Functionality with Automatic Device Discovery and Display
    • Supports 1 SATA HDD up to 10TB each
    • ONVIF Profile S Compliant for IP Cameras
    • Long transmission distance over RG-6 coax cable up to 2000ft (600m)
    • Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices

    SKU: HNR081X Categories: ,
    Video & Audio Inputs
    Analog Video Input8-ch, BNC
    IP Video Input4-ch (only IP up to 12ch); each channel up to 8MP
    Supported Analog Camera Type Support AHD input:
    8MP @ 15fps
    5MP @ 20fps
    4MP @ 30fps
    1080P @ 30fps
    720P @ 30fps
    Support TVI input:
    8MP @ 15fps
    5MP @ 20fps
    4MP @ 30fps
    1080P @ 30fps
    720P @ 30fps
    Support CVI input:
    8MP @ 15fps
    5MP @ 25fps
    4MP @ 30fps
    1080P @ 30fps
    720P @ 30fps
    Support CVBS input
    Audio Input1-ch, RCA
    Audio CompressionG.711U
    Video & Audio Outputs
    CVBS Output1-ch, BNC
    VGA Output1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz
    HDMI Output3840 x 2160 / 30Hz, 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz
    Audio Output1-ch, RCA
    Synchronous Playback8
    Live view displayHDMI / VGA: 1 / 4 / 6 / 8 / 9 / 16
    Two-way Audio1-ch, RCA
    Snapshot
    FTP/Schedule/Event Snapshot8-ch snapshot, up to 704 x 576 resolution
    Network
    Incoming Bandwidth40Mbps (Up to 56Mbps after all analog channel conversion)
    Outgoing Bandwidth64Mbps
    Remote Users128
    ProtocolsTCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
    Supported BrowsersIE(IE10/11) for Windows;
    Firefox (version 52.0 and above) for Windows;
    Chrome(version 45 and above) for Windows;
    Edge(version 79 and above) for Windows
    Encoding
    Recording Resolution8MP Lite / 5MP Lite /4MP Lite / 1080P / 720P / CIF
    Recording
    Frame Rate
    Main streamSub stream
    8MP Lite @ 8fpsD1 @ 8fps
    5MP Lite @ 12fpsD1 @ 12fps
    4MP Lite @ 15fpsD1 @ 15fps
    1080P @ 15fpsD1 @ 15fps
    720p @ 30fpsD1 @ 30fps
    Audio Sample Rate8KHz,16 bit per channel
    Audio Bit Rate64Kbps per channel
    Decoding
    Capability (fps)Analog: 8 x 8MP Lite @8, 8 x 5MP Lite @12, 8 x 4MP Lite @15, 8 x 1080P @15
    IP: 1 x 8MP @ 30, 2 x 4MP @ 30, 4 x 1080P @ 30
    Hard Disk Drives
    SATA1 SATA Interface
    CapacityUp to 10TB for each HDD
    Smart Alarm
    VCA DetectionUltra Motion Detection (UMD) for analog: 8-ch
    VCA SearchBehavior Search
    General Alarm
    General AlarmMotion detection
    Alert AlarmIP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk
    Full, Recording/Snapshot Abnormal
    External Interface
    Network Interface1 RJ45 10M/100M self-adaptive Ethernet Interface
    USB InterfaceRear panel: 2 x USB2.0
    Serial Interface1 x RS485
    Alarm In4-ch
    Alarm Out1-ch
    General
    Power Supply12V DC; Power Consumption: ≤ 10 W( without HDD )
    Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
    Dimensions (W × D × H)260 × 226 × 47mm (10.2 × 8.9 ×1.8")
    Weight (without HDD)1.1Kg (2.42lb)
    General
    CertificationsFCC, CE (UL - Power Supply only)

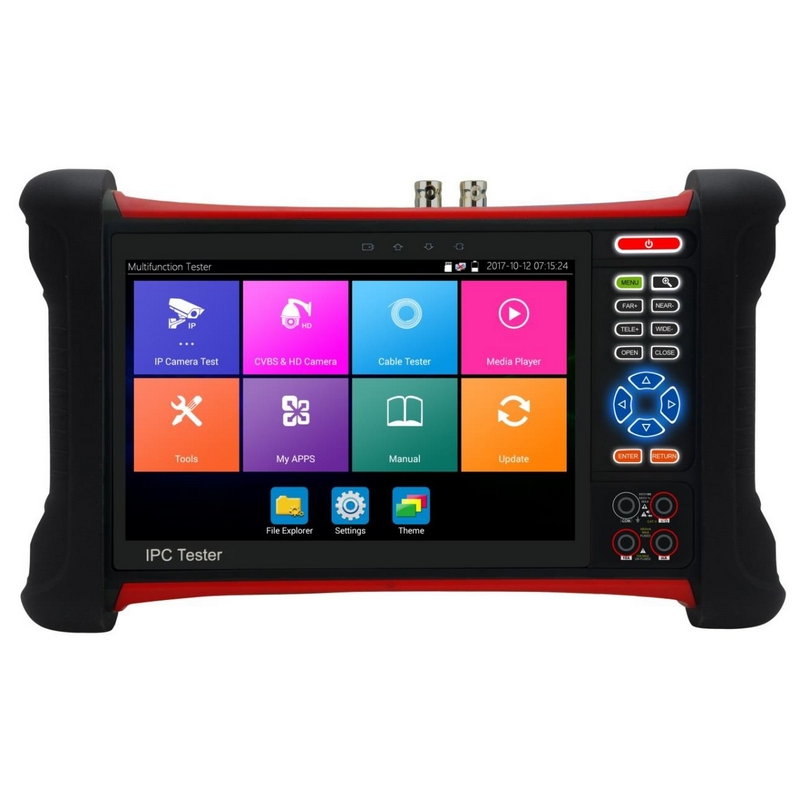

    4KTESTMON

    Video Test Monitor

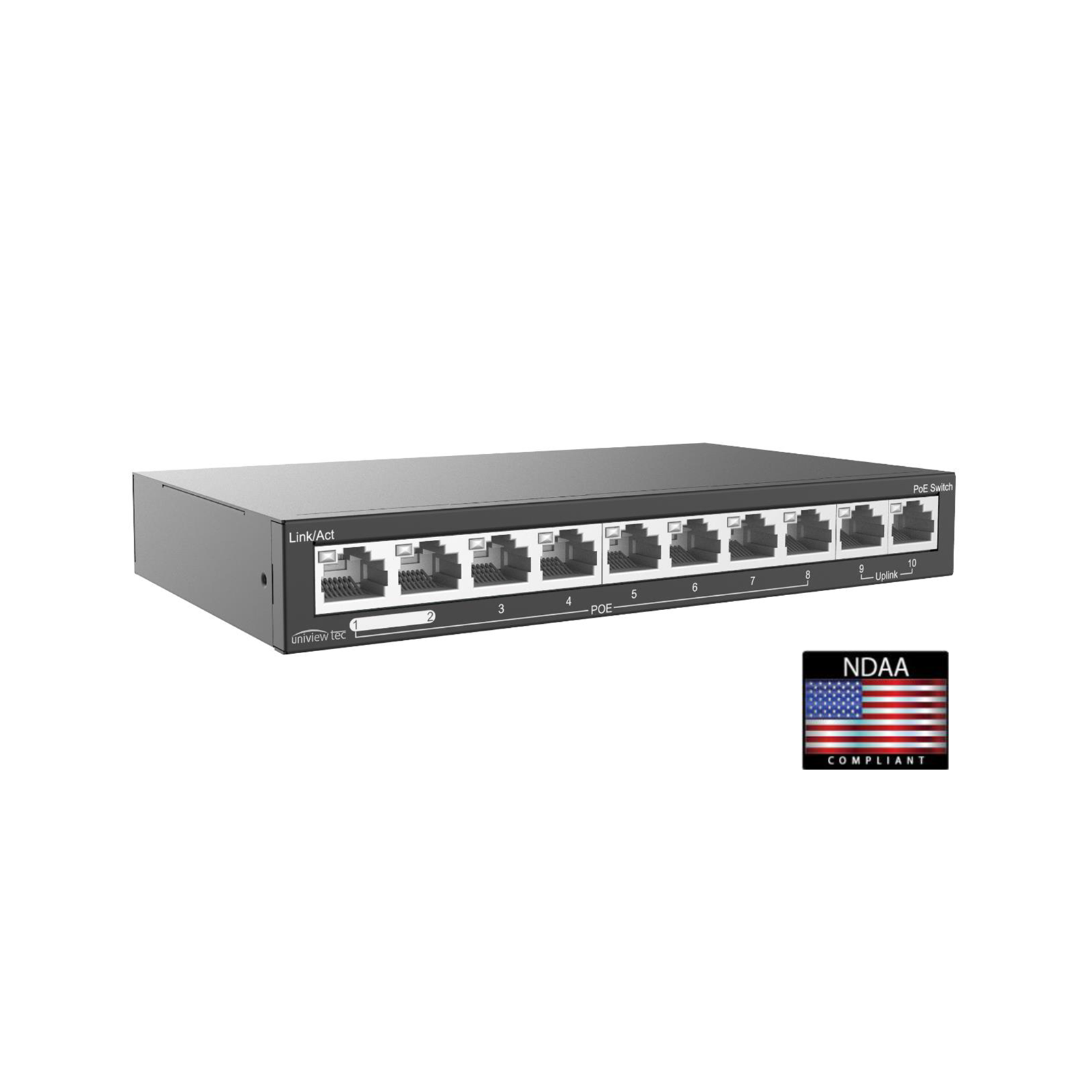

    NSW08PX

    8-Port PoE Network Switch

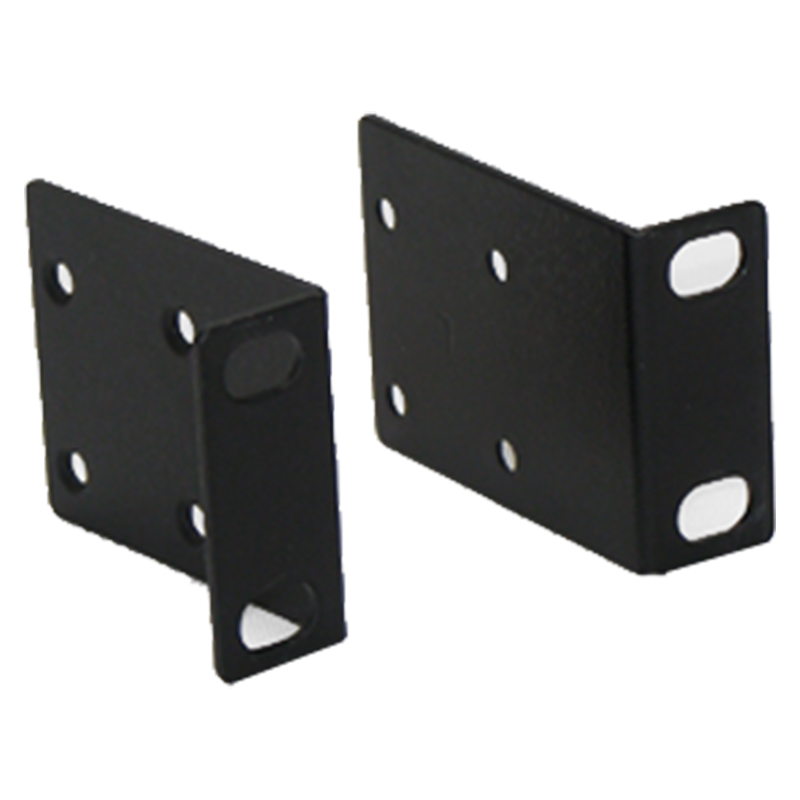

    RCKERS1
