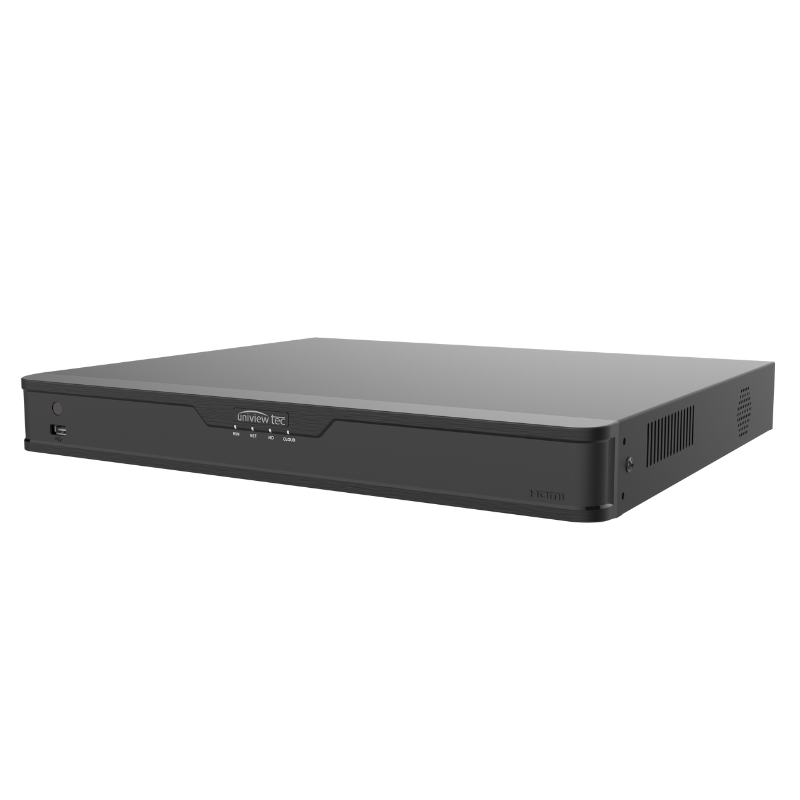

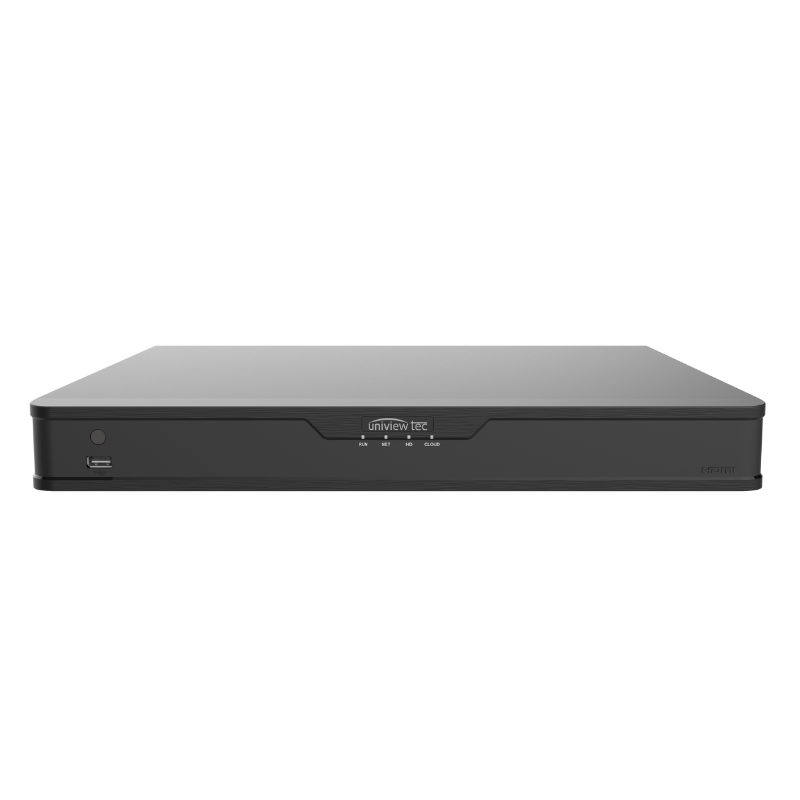

HNR162X

16ch Analog x 8ch IP, 8MP Resolution, Hybrid NVR

    • 2TB HDD
    • HNR162X-2T
    • 16ch Analog x 8ch IP, 8MP Resolution, Hybrid NVR
    • 4TB HDD
    • HNR162X-4T
    • 16ch Analog x 8ch IP, 8MP Resolution, Hybrid NVR
    • 8TB HDD
    • HNR162X-8T
    • 16ch Analog x 8ch IP, 8MP Resolution, Hybrid NVR
    • 16TB HDD
    • HNR162X-16T
    • 16ch Analog x 8ch IP, 8MP Resolution, Hybrid NVR
    Want to buy this product?
    Find A Dealer

    Key Features

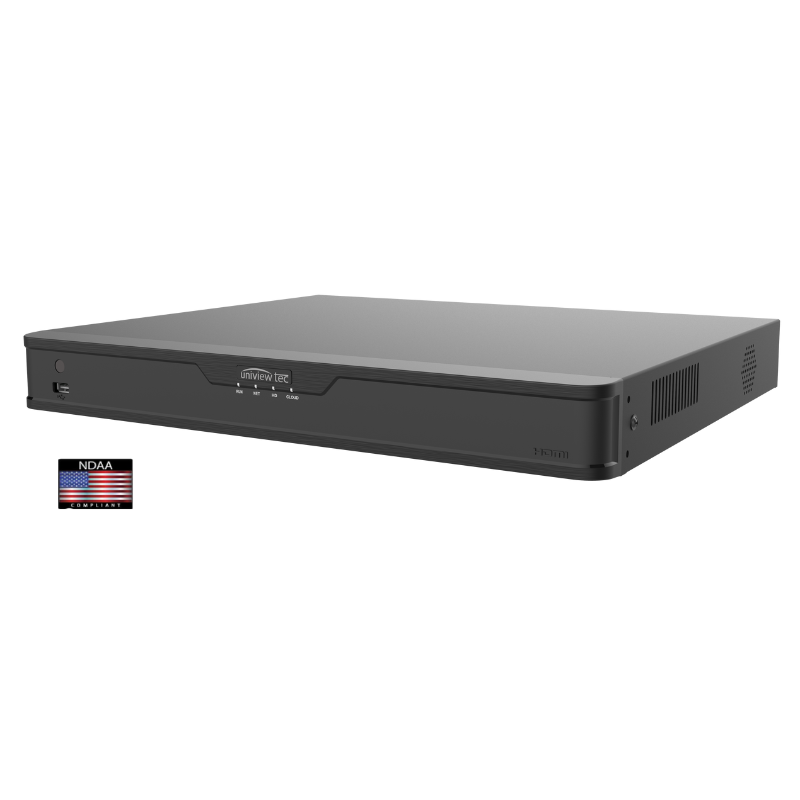

    • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
    • 16 analog x 8 IP Cameras, Hybrid network recorder with H.265 Compression
    • Simultaneously supports 16 Analog (AHD, TVI, CVI and CVBS) and 8 IP Video Inputs with adaptive access (or up to 24 IP channels if no analog cameras are connected)
    • Supports High Definition Analog (HD Analog) over Coax Technology for use of Existing Coax Cables & BNC Connectors, allowing mega-pixel video images from AHD, TVI and CVI camera without any rewiring
    • Supports recording of up to 8MP Resolution for HD Analog and IP Cameras
    • Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
    • HDMI display resolution up to 8MP
    • Supports Audio I/O and PTZ Camera control
    • Easy Plug and Play Functionality with Automatic Device Discovery and Display
    • Supports 2 SATA HDD up to 10TB each
    • ONVIF Profile S Compliant for IP Cameras
    • Long transmission distance over RG-6 coax cable up to 2000ft (600m)
    • Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices

    SKU: HNR162X Categories: ,
    Video & Audio Inputs
    Analog Video Input16-ch, BNC
    IP Video Input8-ch (only IP up to 24ch); each channel up to 8MP
    Supported Analog Camera TypesSupport AHD input:
    8MP @ 15fps
    5MP @ 20fps
    4MP @ 30fps
    1080P @ 30fps
    720P @ 30fps
    Support TVI input:
    8MP @ 15fps
    5MP @ 20fps
    4MP @ 30fps
    1080P @ 30fps
    720P @ 30fps
    Support CVI input:
    8MP @ 15fps
    5MP @ 25fps
    4MP @ 30fps
    1080P @ 30fps
    720P @ 30fps
    Support CVBS input
    Audio Input1-ch, RCA
    Audio CompressionG.711U
    Video & Audio Outputs
    CVBS Output1-ch, BNC
    VGA Output1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz
    HDMI Output3840 x 2160 / 30Hz, 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz
    Audio Output1-ch, RCA
    Synchronous Playback16
    Live view displayHDMI / VGA: 1 / 4 / 6 / 8 / 9 / 16 / 25
    Two-way Audio1-ch, RCA
    Snapshot
    FTP/Schedule/Event Snapshot16-ch snapshot, up to 704 x 576 resolution
    Network
    Incoming Bandwidth80Mbps (Up to 112Mbps after all analog channel conversion)
    Outgoing Bandwidth160Mbps
    Remote Users128
    ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP
    Supported BrowsersIE(IE10/11) for Windows
    Firefox (version 52.0 and above) for Windows
    Chrome(version 45 and above) for Windows
    Edge(version 79 and above) for Windows
    Encoding
    Recording Resolution8MP Lite / 5MP Lite /4MP Lite / 1080P / 720P / CIF
    Recording
    Frame Rate
    Main streamSub stream
    8MP Lite @ 8fpsD1 @ 8fps
    5MP Lite @ 12fpsD1 @ 12fps
    4MP Lite @ 15fpsD1 @ 15fps
    1080P @ 15fpsD1 @ 15fps
    720p @ 30fpsD1 @ 30fps
    Audio Sample Rate8KHz,16 bit per channel
    Audio Bit Rate64Kbps per channel
    Decoding
    Capability (fps)Analog: 16 x 8MP Lite @ 8, 16 x 5MP Lite @ 12, 16 x 4MP Lite @ 15, 16 x 1080P @ 15, 16 x 720P @ 30
    IP: 24 x D1 @ 30, 16 x 720P @ 30, 8 x 1080P @ 30
    Hard Disk Drives
    SATA2 SATA Interface
    CapacityUp to 10TB for each HDD
    Smart Alarm
    VCA DetectionUltra Motion Detection (UMD) for analog: 8-ch
    VCA SearchBehavior Search
    General Alarm
    General AlarmMotion detection
    Alert AlarmIP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk
    Full, Recording/Snapshot Abnormal
    External Interface
    Network Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
    USB InterfaceRear panel: 1 x USB3.0, Front panel: 1 x USB2.0
    Serial Interface1 x RS485
    Alarm In4
    Alarm Out1
    General
    Power Supply12V DC; Power Consumption: ≤ 12 W( without HDD )
    Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
    Dimensions (W × D × H)380 × 326 × 53mm (15 × 12.8 × 2.1")
    Weight (without HDD)2Kg (4.4lb)
    General
    CertificationsFCC, CE (UL – Power Supply only)
