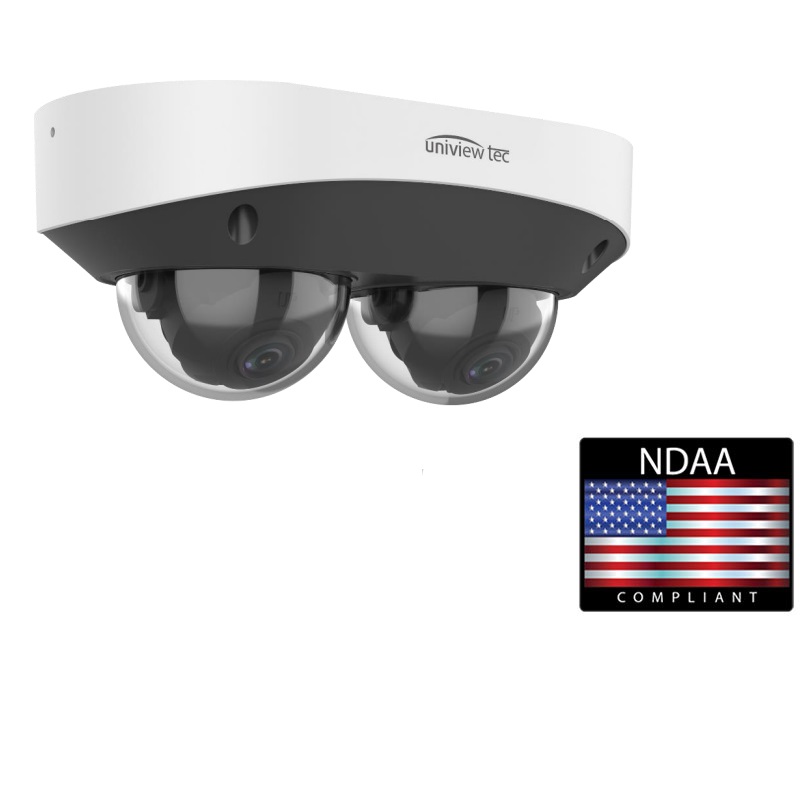

IPV4428X

4MP, DUAL LENS, INTELLIGENT MULTIVIEW DOME

Want to buy this product?
Find A Dealer

Key Features

  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • Dual Channel, Multiview with Exceptional Video Quality at 4MP, 2688 x 1520 Resolution
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
  • Single IP with Dual Channels, each with 2.8mm fixed, wide-angle lens
  • Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 98 Feet
  • TRUE Day/Night and WDR (130db) functionality for all Lighting Conditions
  • Backlight Compensation, Defog and 3D DNR (Digital Noise Reduction)
  • Triple Video Streams; ONVIF Profile S Compliant and Built-in Micro-SD Card Slot enables local storage up to 256GB
  • Intelligent perimeter protection such as attribute collection with color retrieval, cross line and people counting, and smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
  • 3-Way Axis, IP67 Weather Resistant Housing and PoE & 12VDC Power Options
  • Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Device

Compare
SKU: IPV4428X Categories: ,

Statistical AnalysisPeople counting, support people flow counting and crowd density monitoring

Camera
Sensor 1/3” 4MP, progressive scan CMOS
Minimum illumination Color: 0.002 lux (F1.6, AGC ON); 0 lux with IR on
True Day / Night IR-cut filter with auto switch (ICR)
Shutter Auto / Manual, 1 ~ 1/100000s
Adjustment angle (3-way Axis) Pan: 0° ~ 180°; Tilt: 0° ~ 66°; Rotate: 0° ~ 346°
WDR 130dB
S/N >52dB
Lens
Lens 2.8mm @ F2.0
Iris Fixed
Field of View (H) 97.7°
Field of View (V) 52.7°
Field of View (D) 102.5°
DORI
DORI Distance
Detect (m)

63

 Observe (m)

25.2

 Recognize (m)

12.6

 Identify (m)

6.3
Illuminator
IR Range Up to 40m (131ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4MP (2688 x 1520), Max 25fps; 4MP (2560 x 1440), Max 25fps; 3MP (2304 x 1296), Max 30fps; 1080P (1920 x
1080)
Sub Stream: 1080P (1920 x 1080), Max 30fps; 720P (1280 x 720) Max 30fps; D1 (720 x 576), Max 30fps; 640 x 360, Max
30fps; 2CIF (704 x 288), Max 30fps; CIF (352 x 288), Max 30fps
Third Stream: D1 (720 x 576), Max 30fps; 640 x 360, Max 30fps; 2CIF (704 x 288), Max 30fps; CIF (352 x 288), Max 30fps
Video Bit Rate 128 Kbps~16 Mbps
U-code Supported
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Triple
White Balance Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Digital Noise Reduction 2D / 3D DNR
Smart IR Supported
Flip Normal / Vertical / Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise
HLC Supported
BLC Supported
Defog Digital Defog
Intelligent Analytics
Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Intrusion Events
Basic Detection Motion detection, Ultra motion detection, tampering alarm, audio detection
General Function Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access policy, ARP protection, RTSP
authentication, user authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Suppressione Support
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS,
SSL/TLS, SNMP, SSH
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP,
Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client Guard Station, Guard Viewer
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above;
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I / O Input: impedance 35kΩ; amplitude 2V [p-p]; Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I / O 1 /1
Built-in Mic Support
Network 1 * RJ45 10M/100M Base-TX Ethernet
General
Power DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 9.1W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (Ø × H) 176 × 104 × 72mm (6.9 × 4.1’ ×2.8”)
Weight 0.62kg (1.37lb)
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Conformity Certifications IP67, CE, FCC

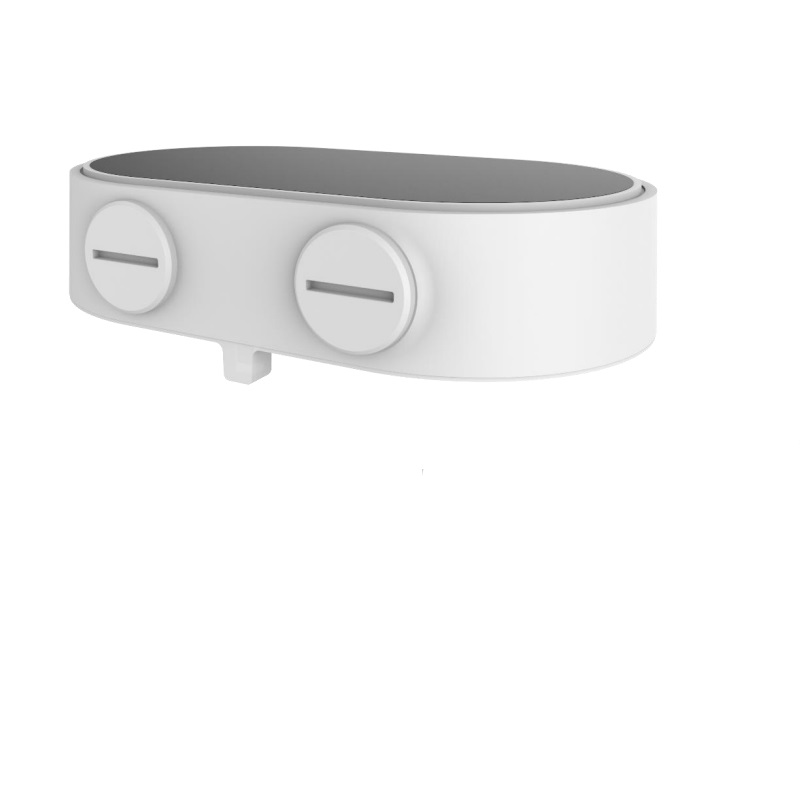

Φ176 x 107 x 48mm (6.9 x 4.2 x 1.9”) TR-JB08

Junction Box

Waterproof Plastic Grommet TR-A01-IN

Waterproof Plastic Grommet

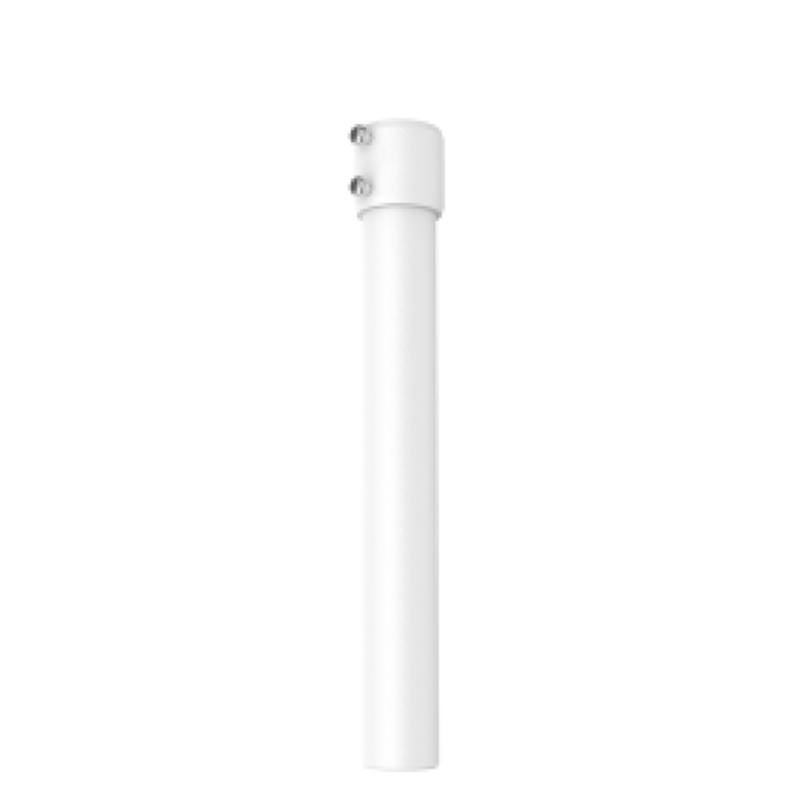

Fixed Dome Wall Mount_208 x 125 x 125mm TR-SE24-IN

200mm Extension

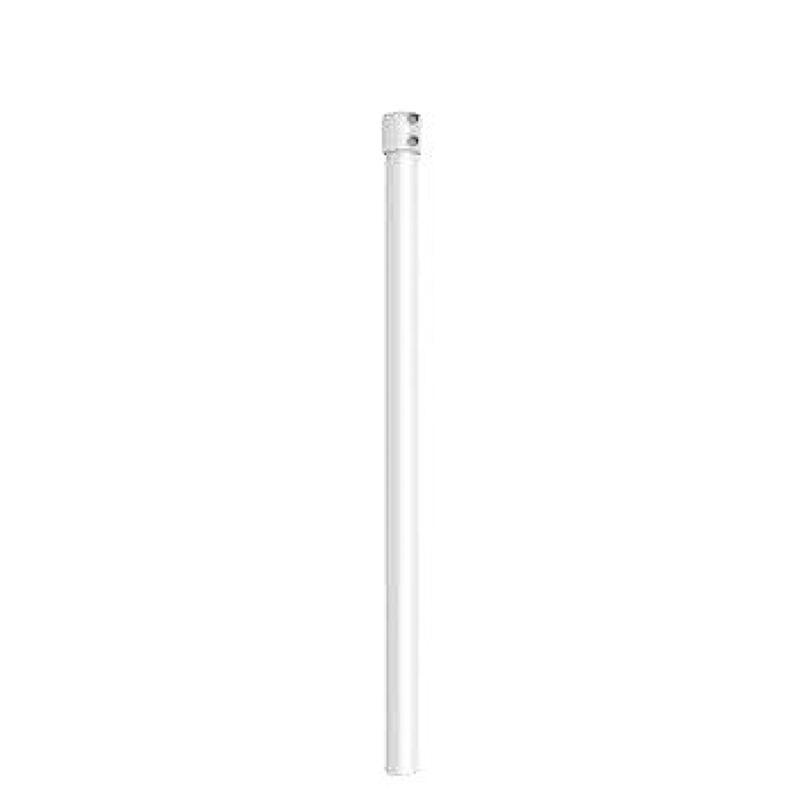

Fixed Dome Wall Mount_208 x 125 x 125mm TR-SE24-A-IN

500mm Extension

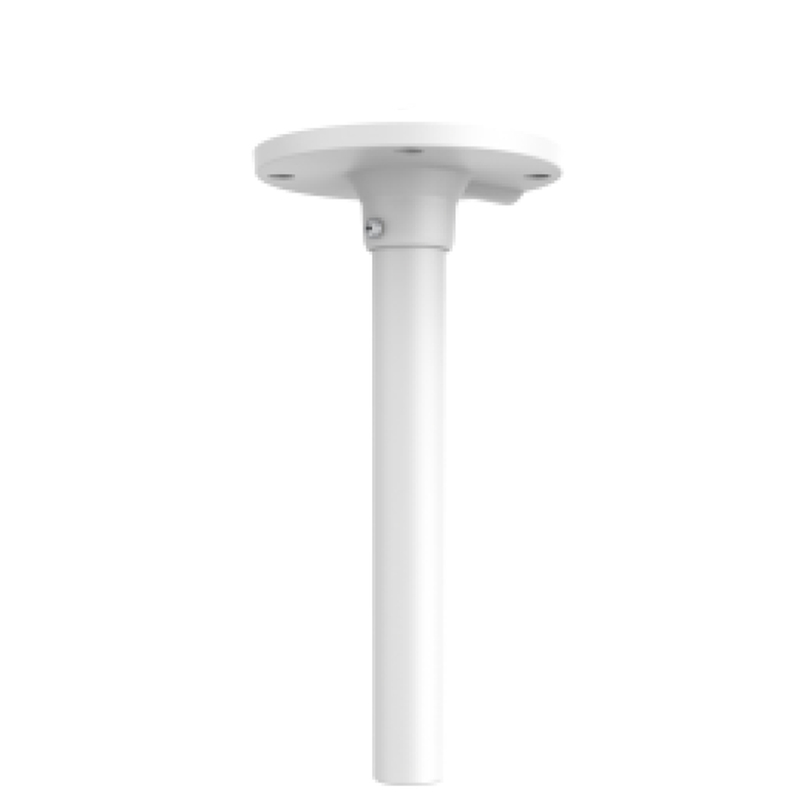

Fixed Dome Wall Mount_208 x 125 x 125mm TR-CM24-IN

200mm Pendant Mount

TR-JBO7 / WM03-H-IN-V2 TR-JBO7 / WM03-H-IN-V2

WALL MOUNT / JUNCTION BOX COMBO

TR-UP06-C-IN-V22 TR-UP06-C-IN-V2

POLE MOUNT

TR-UC08-C-V2 TR-UC08-C-V2

BULLET & VANDAL DOME CORNER MOUNT

TR-WM03-E-IN-V2 TR-WM03-E-IN-V2

FIXED DOME WALL MOUNT
