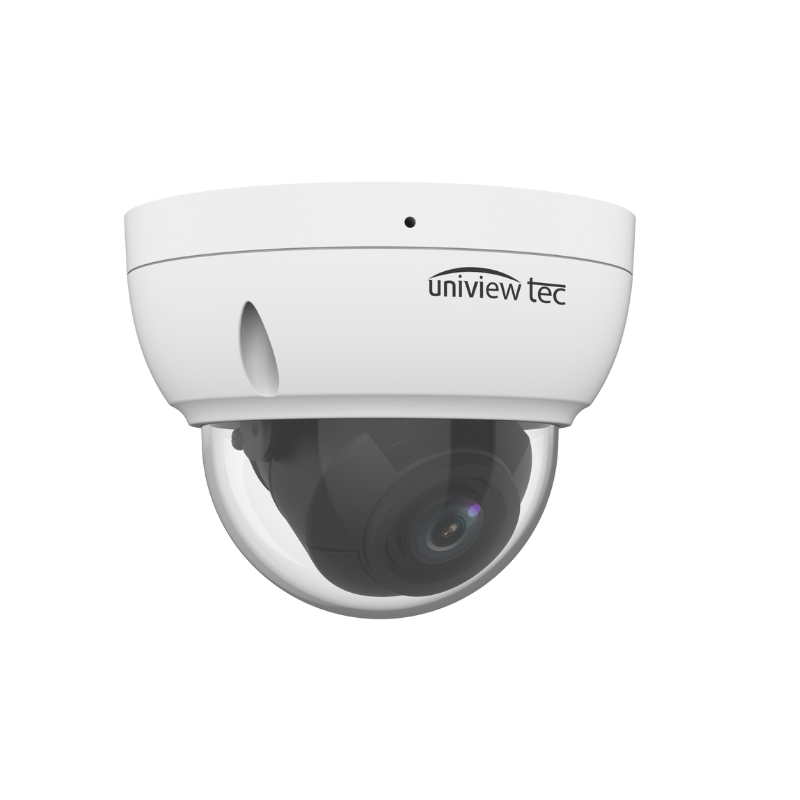

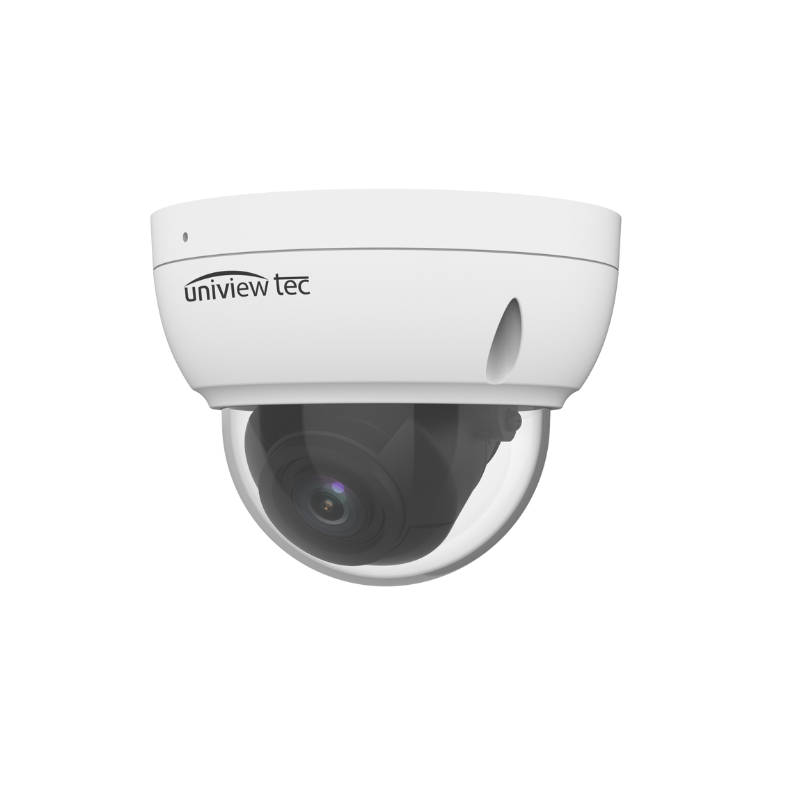

4MP, TRUE DAY/NIGHT, WDR, IR VANDAL DOME

Want to buy this product?

Find A Dealer

Key Features

Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
Exceptional Video Quality with 4MP, 2560 x 1440 Resolution
Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 164 Feet
2.8 ~ 12mm motorized varifocal, automatic focus lens
TRUE Day/Night and WDR functionality for all Lighting Conditions
Backlight Compensation and 3D DNR (Digital Noise Reduction)
Triple Video Streams; ONVIF Profile S Compliant
Powerful Video Analytics such as Intrusion, Tampering, Audio and Human Body Detection
PoE & 12VDC Power Options
Built-in Micro-SD Card Slot enables local storage up to 512GB
IK10, IP67 Weather Resistant Housing
Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices

View More Features

Compare

SKU: IPV4U212MX Categories: IP Cameras, Vandal Dome

Camera
Sensor	1/2.7" CMOS
Minimum Illumination	Color: 0.005Lux (F1.8, AGC ON); 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment Angle	Pan: 3° ~ 360°, Tilt: 0° ~ 70°, Rotate: 3° ~ 360°
S/N	>52dB
WDR	120dB
Lens
Focal Length	2.8 ~ 12 mm
Iris	F1.8
Field of View (H)	102.79°~ 30.86°
Field of View (V)	54.50°~ 17.49°
Field of View (D)	106.94°~35.49°
DORI
DORI Distance(Lens)	2.8mm, 12mm
DORI Distance(Detect)	63.0m(206.7ft), 270.0m(885.8ft)
DORI Distance(Observe)	25.2m(82.7ft), 108.0m(354.3ft)
DORI Distance(Recognize)	12.6m(41.3ft), 54.0m(177.2ft)
DORI Distance(Identify)	6.3m(20.7ft), 27.0m(88.6ft)
Illuminator
Supplemental Light	IR
Illumination Distance(IR)	50 m (164.0 ft)
Wavelength	850 nm
IR On/Off Control	Auto/Manual
Video
Video Compression	H.265; H.264
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4MP (25601440), Max 25fps; 3MP (23041296), Max 30fps; 1080P (19201080), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360,Max 30fps;
Video Bit Rate	128 Kbps ~ 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs/td>
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Video Stream	Dual Streams
White Balance	Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise
De-warping	N/A
HLC	Support
BLC	Support
Defog	Digital Defog
Events
Basic Detection	Intrusion (based on Human Body Detection); Motion Detection; Tampering Alarm; Audio Detection
General Function	Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication
Audio
Audio Compression	G.711U; G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 KHz
Storage
Edge Storage	Micro SD, up to 512 GB
Network Storage	ANR; NAS (NFS)
Network
Protocols	IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; SSL/TLS; QoS; SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T); API
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Client	Guard Live, Guard Viewer, Guard Station
Web Browser	Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O	N/A
Alarm I/O	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 x RJ45 10M/100M Base-TX Ethernet
Video Output	N/A
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1) CB (IEC 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection	IP67 (IEC 60529) IK10 (IEC 62262)
General
Power	DC 12V±25%, PoE (IEEE 802.3af); Max 6.0W
Power Interface	Ø 5.5 mm coaxial power plug
Dimensions	Ø128 x 100mm (Ø5.0” x 3.9”)
Weight	0.56kg (1.23lb)
Environment	-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing
Surge Protection	6KV
Reset Button	Support
