IPT5EC28X

5MP, COLORHUNTER, WDR, AI, IR, TURRET

Want to buy this product?
Find A Dealer

Key Features

  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • ColorHunter technology ensures ultra-high color image up to 0.01 Lux (F1.6, AGC ON)
  • Exceptional Video Quality with 5MP, 2880 x 1620 Resolution
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
  • Powerful, Smart IR LED Lights for 0Lux Nighttime Operation up to 98 Feet
  • 2.8mm Fixed Lens; ONVIF Profile S Compliant
  • TRUE Day/Night and WDR functionality for all Lighting Conditions
  • Dual Video Streams, Built-in mic, Digital Defog and 3D DNR
  • Intelligent, smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
  • PoE & 12VDC Power Options and Optional Wall and Pendant Mounts Available
  • Built-in Micro-SD Card Slot enables local storage up to 128GB/li>
  • 3-Way Axis and IP67 Weather Resistant
  • Supported by Uniview tec Guard Station Software, as well as Guard Live and Guard Viewer Mobile App’s for iPhone and Android Devices

SKU: IPT5EC28X Categories: ,
Camera
Resolution 5MP
Sensor 1/3.0" CMOS
Min. Illumination Color: 0.01 lux ( F1.6, AGC ON); 0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
S/N >52dB
WDR Digital
Lens
Lens Type 2.8mm
Iris Type Fixed
Iris F1.6
Field of View (H) 97.0°
Field of View (V) 52.2°
Field of View (O) 107.5°
DORI
DORI Distance(Lens) 2.8mm
DORI Distance(Detect) 63.0m(206.7t)
DORI Distance(Observe) 25.2m(82.7ft)
DORI Distance(Recognize) 12.6m(41.3ft)
DORI Distance(Identify) 6.3m(20.7ft)
Illuminator
Illumination Distance(IR) 30m
Illumination Distance(Light) 30m
Wavelength 850 nm
IR On/Off Control Auto/Manual
Video
Video Compression H.265; H.264; MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main: 5MP (2880*1620) @20fps; 4MP (2560*1440) @25fps; 3MP (2304*1296) @30fps;1080P (1920*1080) @30fps; 720P (1280*720) @30fps
Sub: D1 (720*576) @30; 640*360 @30; 2CIF(704*288) @30; CIF(352*288) @30
Video Bit Rate 128 Kbps~6144 Kbps
U-code Support
OSD, Privacy Mask Up to 4
ROI Up to 8 areas
Video Stream Dual Streams
White Balance Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Events
Basic Detection Motion detection; Ultra motion detection; Tampering alarm; Audio detection, Human Body Detection
General Function Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP authentication
Audio
Audio Compression G.711U; G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD，up to 128 GB
Network Storage ANR; NAS(NFS)
Network
Protocols IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T); API; SDK
User/Host Up to 32 users, 2 user levels: administrator and common user
Security Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF
Client Guard Live, Guard Viewer, Guard Station
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and abov
Interface
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
Network 1 * RJ45 10M/100M Base-TX Ethernet
Certification
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection IP67 (IEC 60529)
General
Power DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 2.8W
Power Interface Ø 5.5mm coaxial power plug
Dimensions Φ126 x 93.6mm (Φ5.0” x 3.7”)
Weight 0.29kg (0.64lb)
Material Metal + Plastic
Environment -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing
Surge Protection 4KV
Reset Button N/A
TR-JB03-H-IN

Junction Box

TR-A01-IN

WATERPROOF PLASTIC GROMMET

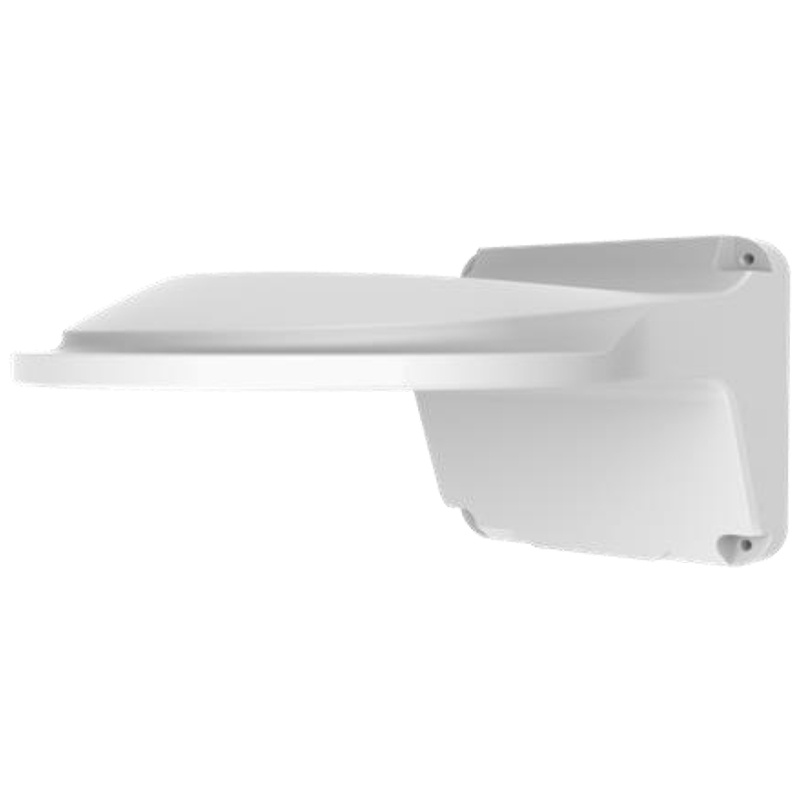

WMJB01

Wall Mount / Junction Box Combination

TR-WM03-B-IN

Fixed Dome Wall Mount

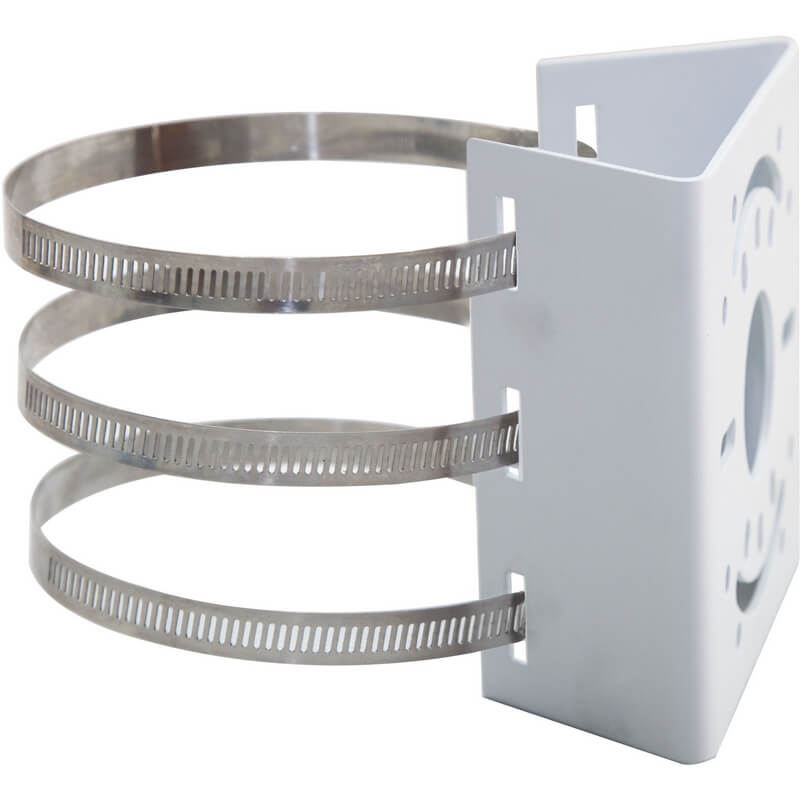

TR-UP06-IN
