UHDB5EC28X

5MP HD ANALOG, COLORHUNTER, DWDR, BULLET

Key Features

Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
High Video Quality with 5MP, 2880 x 1620 Resolution
High Definition Analog (HD Analog) over Coax Technology, utilizes existing Coax Cables & BNC Connectors, allowing Mega-pixel Video Images without any rewiring necessary
TVI, AHD, CVI and CVBS Protocol selectable — Engineered to work with UVT Hybrid NVR’s for Maximum Stability and Performance
ColorHunter Technology allows 24/7 Full-Color Imaging with White Light Illumination
2.8mm fixed lens
TRUE Day/Night and DWDR functionality for all Lighting Conditions
Built-in Microphone for High Quality Audio Transmission via Coax Cables
Supports 180° horizontal flip, 180° vertical flip
Easy to Operation On Screen Display (OSD) Configuration Menu
12VDC Power Options; IP67 Weather Resistant Housing with Optional Mounts
Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices

SKU: UHDB5EC28X Categories: AHD Solutions, Bullet Camera

Minimum illumination0.005 lux (F1.4, AGC ON)
0 lux (white light on)

Sensor
Pixel	5MP
Size	1/2.9" CMOS
Lens
Focal Length	2.8mm
Angle of View (H x V)	110° x 57°
IR Illumination
White Light	One Illuminator; 20M (65ft)
Video
Resolution	5MP @ 25fps: 2880 × 1620; 5MP @ 20fps: 2592 × 1944; 5MP @ 12.5fps: 2592 × 1944 4MP: 2560 × 1440 1080P: 1920 × 1080
Frame rate	TVI: 5MP @ 20fps, 5MP @ 12.5fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps AHD: 5MP @ 20fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps CVI: 5MP @ 25fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps CVBS: PAL, NTSC
Shutter time	PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s
Exposure mode	4 modes: Global (default), BLC, HLC, DWDR
Day/Night	24/7 full-color imaging
Digital noise reduction	2D
White balance	Two modes: Auto (default), Manual
WDR	DWDR
Flip	Supports 180° horizontal flip, 180° vertical flip.
Interface
Power	5.5mm power interface
Video output	BNC, supports TVI / AHD / CVI / CVBS
Operating Environment
Temperature	-30℃ to 60℃ (-22℉ to 140℉)
Humidity	≤95% (RH, non-condensing)
Surge protection	4KV
Ingress protection	IP67
General
Power	DC 12V(±25%), with reverse polarity protection and surge protection, Max 2.4W
Mount	3D bracket supplied, surface mount (default); optional junction box and pole mount available
Dimensions (L x W x H)	142 x 60 x 65mm (5.6 x 2.4 x 2.6”)
Material	Plastic
Weight	145g (0.32lb)
Certification	CE, FCC

TR-UP06-B-IN

Pole Mount

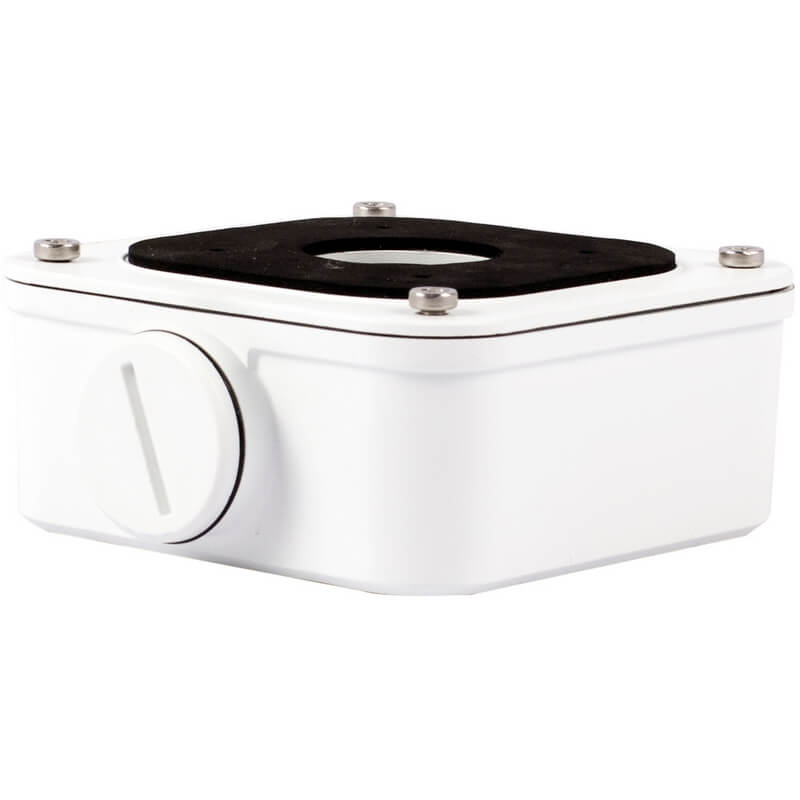

TR-JB05-A-IN
