Multi-Function Video Test Monitor_Front View

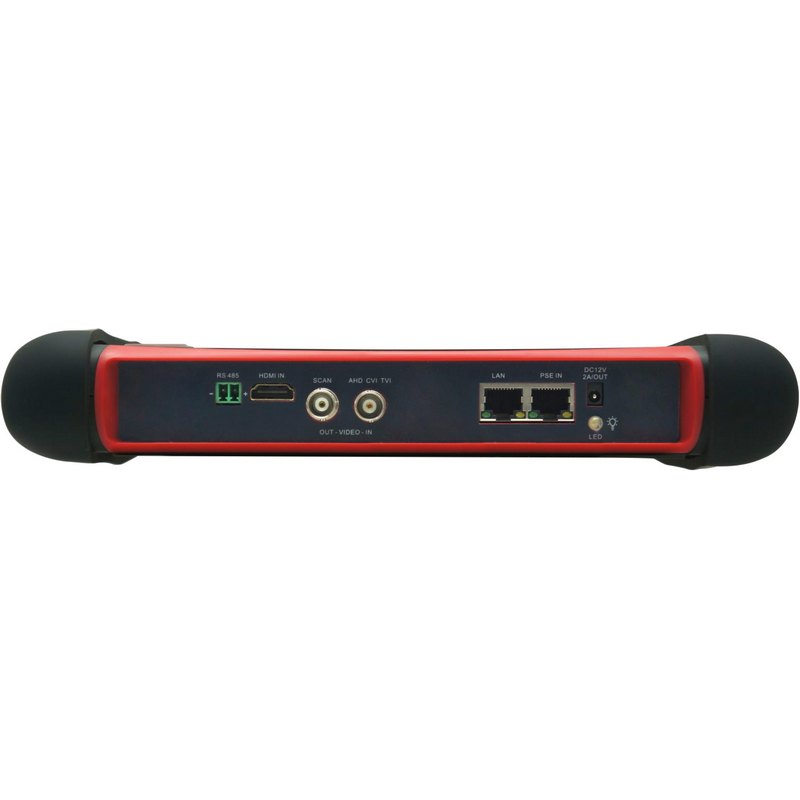

Multi-Function Video Test Monitor_Bottom View

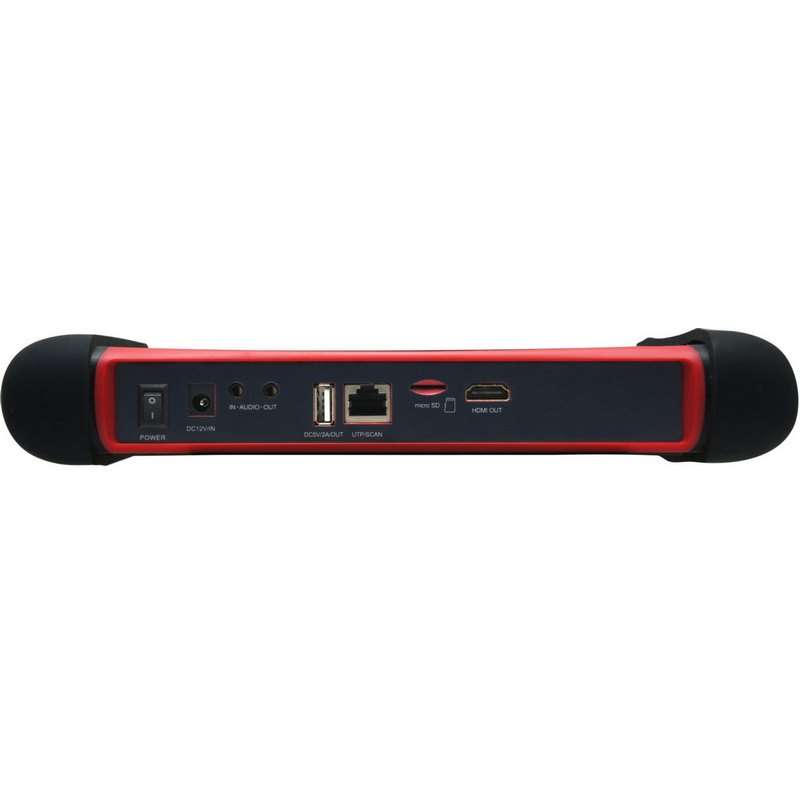

Multi-Function Video Test Monitor_Top View
4KTESTMON

Multi-Function Video Test Monitor

      Want to buy this product?
      Find A Dealer

      Key Features

      • Designed for installation and maintenance of IP and Analog cameras
      • Composite video (CVBS, TVI, CVI, AHD) and IP video input support
      • 7” Retina Touch-Screen, 1920 x 1200 resolution
      • H.265 & H.264 standards support, up to 4K resolution
      • RJ45 Ethernet cable, video level meter and cable trace test support
      • PoE power voltage, PING and IP address searching support
      • HDMI input and output
      • ONVIF Profile S Compliant
      • Rechargeable lithium battery and external 12VDC power supply
      • Wi-Fi connectivity support
      • Audio, PTZ control and color bar generator support

      SKU: 4KTESTMON Categories: ,
      Video Test Monitor
      Monitor 7” retina touch screen
      IP Video1 - RJ-45, 10M/100M auto adjust
      Analog Video 1 x BNC input: CVBS, TVI, CVI, AHD
      1 x BNC output
      Serial Interface 1 x RS-485
      HDMI 1 x input and 1 x output
      PoE 1 x RJ45, 48V output, maximum 24W
      Camera Power 12VDC, 2A output power to camera
      Audio 1 x RCA input and 1 x RCA output
      Micro SD Slot 8GB card included
      Power Supply 12VDC, 2A
      Operating Temperature -10°C ~ + 50°C (4°F ~ 122°F)
      Operating Humidity 30% ~ 90% RH
      Dimensions 255 x 160 x 46mm (10 × 6.3 × 1.8")
      Weight .95kg (2.1lb)
