New Product

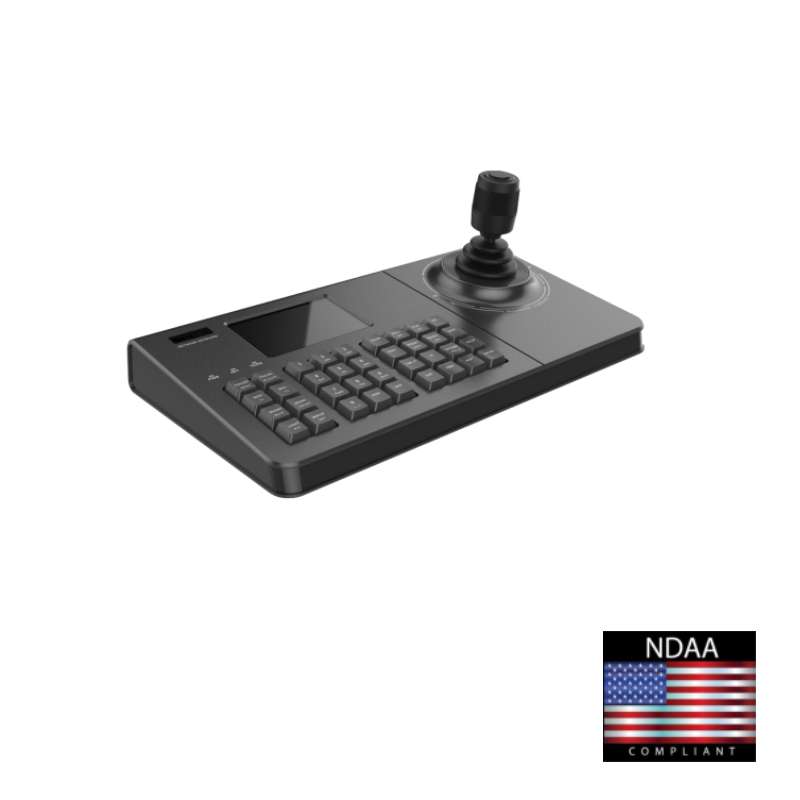

KB-1100-E-NB

NETWORK KEYBOARD CONTROLLER

Want to buy this product?
Find A Dealer

Key Features

  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • 4 inch display screen provides clear image with more details.
  • Simple appearance and buttons layout, aesthetic and user friendly.
  • 4D joystick for PTZ control (move up/down//left/right, focus, zoom).
  • Uses Hoare joystick with high control precision and stability, effectively extending the lifetime.
  • Power on/off button on the keyboard, convenient and energy saving.
  • Simple and clear keyboard configuration, easy for use and maintenance.
  • Supports playing video on video wall and control video.
  • Supports keyboard lock.
  • Allows for setting multiple level user permissions
  • Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices

Compare
SKU: KB-1100-E-NB Categories: ,
General
Screen Size 4 inches
Joystick Four-dimensional joystick
Max Power Consumption ＜5W
Product Dimensions
(W × H × D)		 13.58 x 7.47 x 5.05”
(345.00 x 189.82 x 128.16mm)
Weight 2.64lbs (1.2kg)
Operating Temperature 14°F to 131°F (-10°C to 55°C)
Operating Humidity 10% to 90% RH, noncondensing
Interfaces
Serial Port 1 x RS232 (DB9, reserved)
2 x RS485 (half-duplex, reserved)
Console 1 x Console/RS485 shared interface
(RJ45)
USB 2 x USB (reserved)
Network Interface 1 x RJ45, 10M/100M/1000M Based-T adaptive interface
Power DC 12 V
RST 1 x Reset button

Device Interface Diagram

No. Interface Description
1 RS232 Serial Interface
2 RS485 Serial Interface
3 Console / RS485 Console / RS485 shared interface (RJ45)
4 USB 2 x USB 2.0
5 Network RJ45, 10M/100M/1000M Based-T adaptive
6 RST Reset Button
7 Power supply 12VDC
8 Power switch Power on / off
